Description
STRIPPABLE RUBBER COATING PLATE FOR WATER BASED AND UV COATINGS

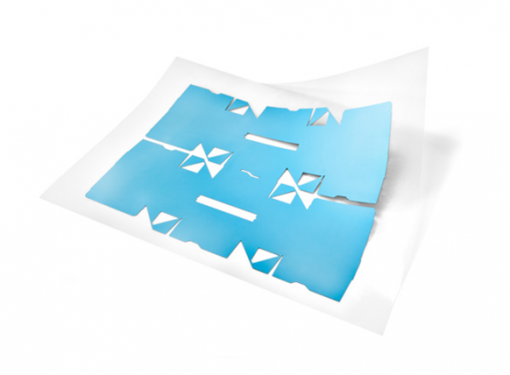

Varniblue Forte is a stripping plate designed for in line coating on sheet fed offset presses.
The plate is reusable many times and is suitable for long run UV and water based coatings.
The combination of Varniblue Forte plate with compressible underlayer Varnicomp SR enhances the coating quality results, ensuring a uniform and consistent coating transfer over a variety of substrates.
When using UV coatings it is highly recommended to clean the plate surface with a wash at the end of every print run in order to remove all coating residue, then rinse with water and dry.

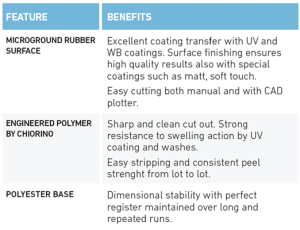

| FEATURE | BENEFITS |
| MICROGROUND RUBBER SURFACE | Excellent coating transfer with WB and UV coatings. Surface finishing ensures high quality results (even with special coatings such as matt, soft touch etc). Easy cutting with both manual and CAD plotter. |
| ENGINEERED POLYMER | Sharp and clean cut out. Resistance to swelling action due to UV coating and washes. Easy stripping and consistent peel strength from batch to batch. |
| POLYESTER BASE | Dimensional stability with perfect register maintained over long and repeated runs. |

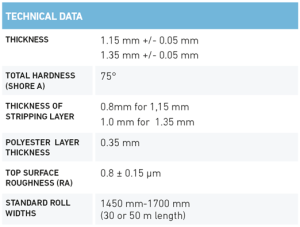

| TECHNICAL DATA | |
| THICKNESS | 1.15 mm +/- 0.05 mm
1.35 mm +/- 0.05 mm |
| TOTAL HARDNESS (SHORE A) | 75 |
| THICKNESS OF STRIPPING LAYER | 0.8 mm for 1.15 mm
1.0 mm for 1.35 mm |
| POLYESTER LAYER THICKNESS | 0.35 mm |
| TOP SURFACE ROUGHNESS (RA) | 0.8 +/- 0.15 µm |
